Guides - Upgrade a Cluster to a Newer Kubernetes Version

Kubernetes releases new software versions and patches on a regular cadence. These updates are integrated into LKE after they are released on upstream Kubernetes, which ensures they are properly tested on the Linode Platform. Kubernetes uses a semantic versioning system that includes three parts: x.y.z, where x is the major version, y is the minor version, and z is the patch version.

• Patch version upgrades (ex: 1.23.4 to 1.23.5): Patches are generally critical bug fixes, which include fixing security vulnerabilities. LKE clusters are automatically upgraded to the latest available patch versions for the cluster’s minor version of Kubernetes (once they are released on LKE).
• Minor version upgrades (ex: 1.23.5 to 1.24.0): Minor versions include new features and may make breaking changes or introduce incompatibilities. Customers are highly encouraged to manually upgrade their clusters, though an upgrade will be scheduled automatically once a cluster’s existing minor version in deprecated.

Upgrade Process

When a Kubernetes version upgrade is initiated on an LKE cluster (including both patch versions and minor versions), the control plane components are automatically upgraded. New worker nodes are also created using the new version. In most cases, there is no downtime or impact to performance for this part of the upgrade.

After the initial upgrade, existing worker nodes need to also be upgraded to the newer Kubernetes version. This typically requires a few extra steps. This guide outlines three options for upgrading these existing nodes, including recycling all worker nodes, performing an in-place upgrade, and performing an out-of-place upgrade. Each of these options is discussed in the Upgrade Worker Nodes section.

Deprecating Kubernetes Versions (End of Life)

Kubernetes versions are also regularly deprecated on LKE. This prevents customers from experiencing issues as a result of using outdated software. When a minor version of Kubernetes is deprecated, an upgrade is scheduled for any LKE clusters using that version. This scheduled update is communicated via email to all affected customers in advance. It is recommended that customers manually initiate the upgrade. If an upgrade does not occur manually, the cluster is automatically upgraded at the scheduled time.

Review the Kubernetes Changelog

Changelogs for each new version of Kubernetes are published on the Kubernetes CHANGELOG page on GitHub. To ensure a clean upgrade and eliminate potential issues, review the changelog entry that corresponds with the Kubernetes version to which your cluster will be upgraded. Since LKE clusters can only be upgraded one minor version at a time (i.e. v1.24.x to v1.25.x), you only need to review a single changelog entry.

Each Kubernetes changelog entry includes patch versions and alpha/development versions. It’s recommended that you review every section titled Changelog since vX.Y.Z starting from your current Kubernetes version and continuing through the latest patch release for the version to which you’ll be upgraded. Compare these changes with the components and configuration of your cluster to help identify any breaking changes or issues that may occur. Additionally, review any upgrade notes, known issues, deprecation notes, or API changes, all of which may appear alongside each changelog.

The Kubernetes Blog may also include a post regarding changes in each version (such as the Kubernetes Removals and Major Changes In 1.25 post). These blog posts may be less detailed, but should be easier to understand so you can quickly identify major changes.

As API changes are an issue that can commonly go unnoticed when upgrading LKE, we additionally recommend checking Kubernetes’ API deprecation guide for more information on API changes, and how they should be addressed in specific circumstances.

Search for Compatibility Issues with Popeye

One way to identify breaking changes and compatibility issues with Kubernetes upgrades is to use the Popeye tool. For help with this process, see the Use Popeye to Check for Kubernetes Configuration Issues guide.

Check the Kubernetes Version on an LKE Cluster

kubectl version --short | grep Server

Server Version: v1.25.6

kubectl get pods --namespace kube-system | grep "kube-proxy"

kube-proxy-gh6xg                           1/1     Running   0          49m
kube-proxy-p4fkm                           1/1     Running   0          53m
kube-proxy-pd5vb                           1/1     Running   0          51m

kubectl describe pod kube-proxy-gh6xg -n kube-system | grep "Image"

    Image:         linode/kube-proxy-amd64:v1.25.6
    ...

kubectl get nodes

NAME                           STATUS   ROLES    AGE    VERSION
lke83159-127587-63922e6379a9   Ready    <none>   103d   v1.24.8
lke83159-127587-63922e639de4   Ready    <none>   103d   v1.24.8
lke83159-127587-63922e63c088   Ready    <none>   103d   v1.24.8

Upgrade Kubernetes on an LKE Cluster

Initiate the Upgrade and Upgrade the Control Plane

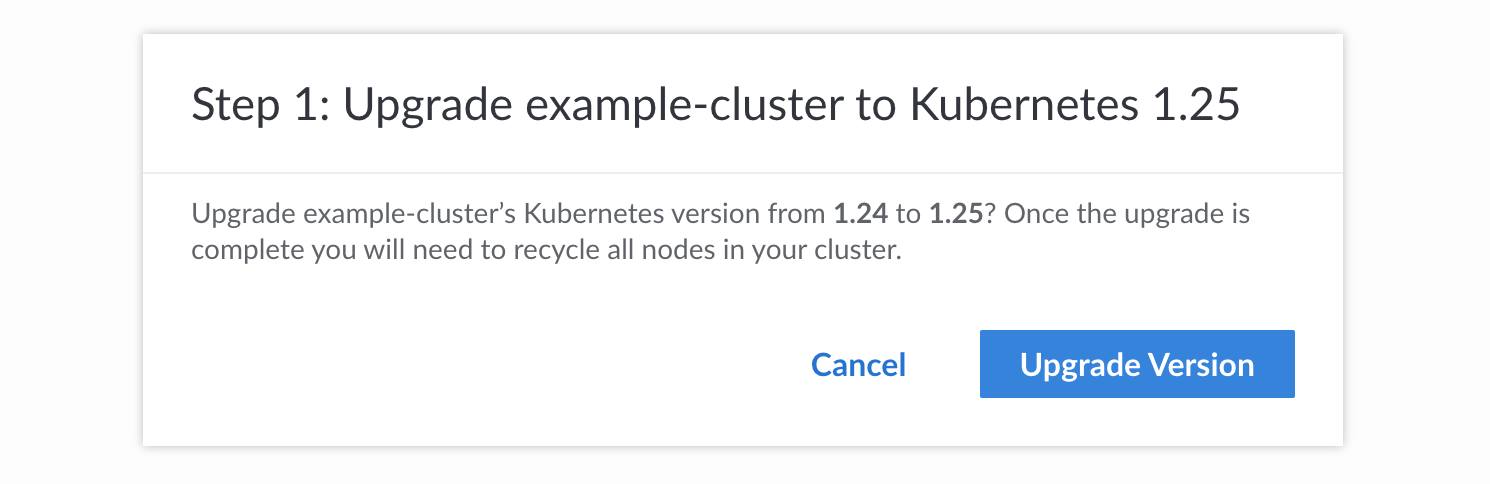

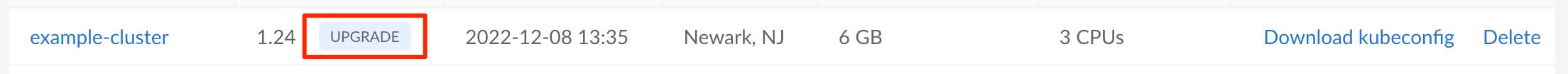

Once you are ready to perform an upgrade, you can start the upgrade process. This automatically upgrades the managed Control Plane on your LKE cluster and ensures that any new worker nodes are created using the newer Kubernetes version.

Upgrade Worker Nodes

Once the upgrade has been initiated, the control plane should be on the newer Kubernetes version but the existing worker nodes will still be on the older version. You can now decide how you’d like to handle upgrading the existing worker nodes to the newer Kubernetes version. Select from one of the options below.

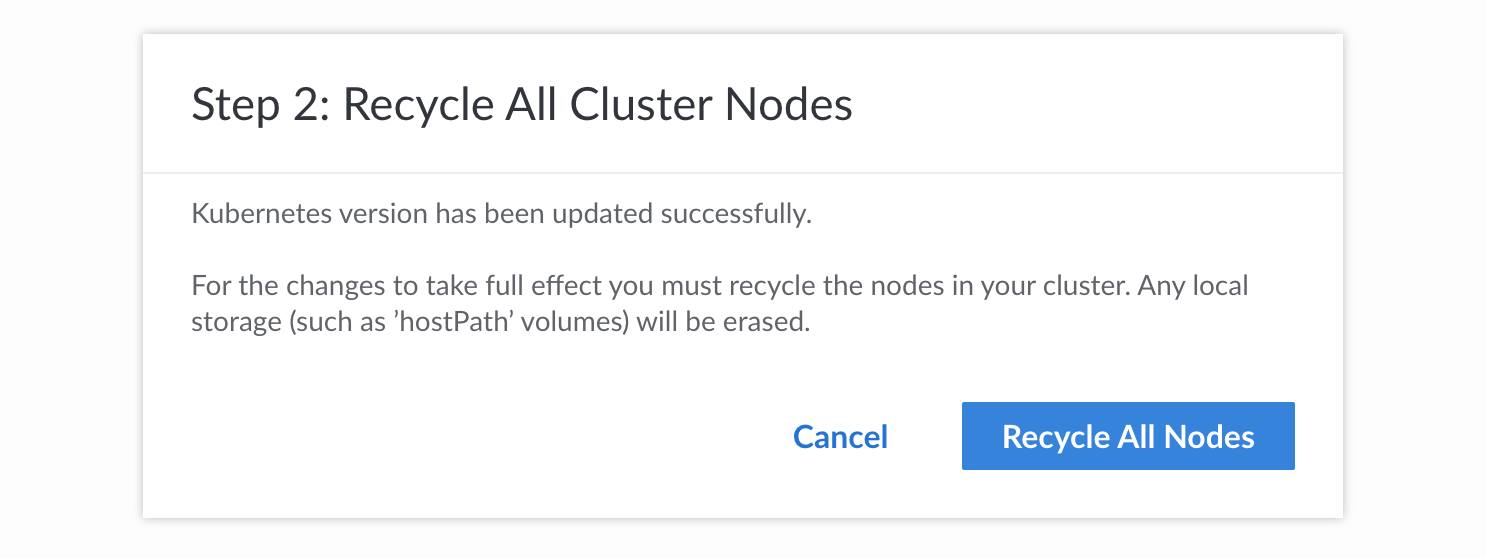

• Recycle All Worker Nodes : This recycles each worker node on a rolling basis so that only one node is down at a time. While this process is generally the easiest method, it will likely impact the application’s performance as your application will have access to fewer resources during the upgrade. It is only recommended if you are not running a production application.

• Perform an In-Place Upgrade : This process temporarily creates one additional worker node on each node pool. This minimizes the cost impact of the upgrade (compared with an out-of-place upgrade) but increases the time the upgrade may take. This is recommended for smaller production applications.

• Perform an Out-of-Place Upgrade : This process temporarily creates an additional node pool (with multiple worker nodes). This minimizes the time the upgrade may take (compared with an in-place upgrade) but increases the cost impact. This is recommended for larger production applications.

It is highly recommended to add additional resources and take a “cordon and migrate” approach, meaning that pods will no longer land on existing nodes and they are all migrated to newer nodes.

Recycle All Worker Nodes

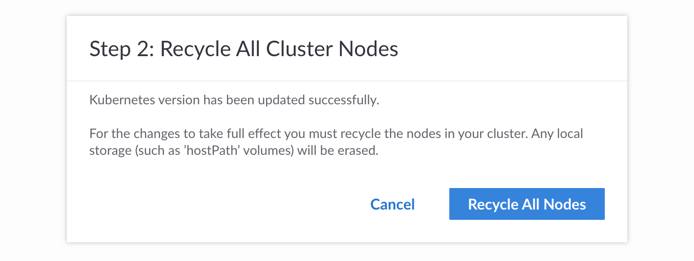

This process is the easiest way to upgrade all worker nodes but will likely impact application performance. It is only recommended if you are not running a production application.

This recycles each worker node on a rolling basis so that only one node is down at any particular moment. In the highest level of detail, each worker node is independently drained and cordoned one at a time. During this process, all workloads are migrated to other nodes. Once a worker node is drained and cordoned, it is removed and a new node is created using the new Kubernetes version. It is synced, and then uncordoned, immediately putting it back live into the cluster with the Ready status.

linode-cli lke cluster-nodes-recycle [cluster-id]

curl -H "Content-Type: application/json" \
      -H "Authorization: Bearer $TOKEN" \
      -X POST \
      https://api.linode.com/v4/lke/clusters/[cluster-id]/recycle

Perform an In-Place Upgrade

This process temporarily creates one additional worker node on each node pool. This minimizes the cost impact of the upgrade (compared with an out-of-place upgrade) but increases the time the upgrade may take. This is recommended for smaller production applications.

1. First, add an additional worker node and, if using the Autoscale feature, increase the minimum number of nodes.

   Locate the node pool on the details page of your LKE cluster in Cloud Manager. Click the corresponding Resize Pool button. Increase the size of the node pool by 1. For example, if you have 3 nodes in the pool, increase that value to 4. For additional instructions, see Resize a Node Pool .

   If you are also using the autoscale feature, increase the minimum and maximum nodes by 1. This can be done by clicking the corresponding Autoscale Pool button and adjusting the minimum and maximum values. For more details, see Autoscale .

   Run the command below, replacing the following values as needed. If you are not using the autoscale feature, remove the last 3 options (starting with autoscaler) from the command.

   • [cluster-id]: The ID of your cluster.
   • [pool-id]: The ID of your node pool.
   • [number-of-nodes]: Enter one value more than the number of nodes that already exist in the node pool.
   • [maximum-nodes]: The maximum number of nodes for the pool. Enter one value more than the existing value.
   • [minimum-nodes]: The minimum number of nodes for the pool. Enter one value more than the existing value.

   linode-cli lke pool-update [cluster-id] [pool-id] \
     --count [number-of-nodes] \
     --autoscaler.enabled true \
     --autoscaler.max [maximum-nodes] \
     --autoscaler.min [minimum-nodes]

   For more details, review the CLI request sample on the Node Pool Update API reference .

   Perform the API request below, replacing the following values as needed. If you are not using the autoscale feature, remove the autoscaler parameters from the request.

   • [cluster-id]: The ID of your cluster.
   • [pool-id]: The ID of your node pool.
   • [number-of-nodes]: Enter one value more than the number of nodes that already exist in the node pool.
   • [maximum-nodes]: The maximum number of nodes for the pool. Enter one value more than the existing value.
   • [minimum-nodes]: The minimum number of nodes for the pool. Enter one value more than the existing value.

   curl -H "Content-Type: application/json" \
         -H "Authorization: Bearer $TOKEN" \
         -X PUT -d '{
           "count": [number-of-nodes],
           "autoscaler": {
             "enabled": true,
             "max": [maximum-nodes],
             "min": [minimum-nodes]
         }' \
         https://api.linode.com/v4/lke/clusters/[cluster-id]/pools/[pool-id]

   For more details, review the shell request sample on the Node Pool Update API reference .

2. Select one worker node running the older Kubernetes version and prevent new pods from being created on it. This can be accomplished using the cordon command through kubectl, replacing [node] with the name of the node you are taking action on.

   kubectl cordon [node]

3. Once traffic is no longer being assigned to that node, drain that worker node so that the existing workloads are rescheduled to other nodes.

   kubectl drain [node] --ignore-daemonsets

   By default, this will allow the pods to gracefully terminate with a default grace period of 30 seconds. If your nodes have a long grace period, it may take a while to migrate off the existing workloads. You can adjust this by using the --grace-period [value] option in the above drain command, replacing [value] with the time in seconds you wish to use. See Termination of Pods on the official Kubernetes documentation.

4. After the node has been drained, it can be recycled, which rebuilds the worker node using the newer Kubernetes version.

   Locate the node pool on the details page of your LKE cluster in Cloud Manager. Next to the node that has just been drained, click the corresponding Recycle button as outlined in Recycle Nodes .

   Run the command below, replacing [cluster-id] with the ID of your cluster and [node-id] with the ID of the node.

   linode-cli lke node-recycle [cluster-id] [node-id]

   For more details, review the CLI request sample on the Node Recycle API reference .

   Perform the API request below, replacing [cluster-id] with the ID of your cluster and [node-id] with the ID of the node.

   curl -H "Content-Type: application/json" \
         -H "Authorization: Bearer $TOKEN" \
         -X POST \
         https://api.linode.com/v4/lke/clusters/[cluster-id]/nodes/[node-id]/recycle

   For more details, review the API request sample on the Node Recycle API reference .

5. Repeat steps 2 through 4 for each worker node until all but the last worker nodes are using the newer Kubernetes version. For the last worker node, repeat steps 2 and 3 to cordon and drain that node - but do not recycle it as that will cause workloads to land back on that node. Instead, continue with the step below to delete it.

6. Remove the additional worker node that was added during this upgrade process. This can be accomplished by resizing your cluster back to your original value to use one less worker node. The last worker node that was created, which was the one you have not yet recycled, is removed during the resize. Then, if you previously adjusted the Autoscale Pool, adjust the values back to what they were before the upgrade.

   Locate the node pool on the details page of your LKE cluster. Click the corresponding Resize Pool button. Decrease the size of the node pool by 1. For example, if you have 4 nodes in the pool, decrease that value to 3. For additional instructions, see Resize a Node Pool .

   If you are also using the autoscale feature, decrease the minimum and maximum nodes by 1. This can be done by clicking the corresponding Autoscale Pool button and adjusting the minimum and maximum values. For more details, see Autoscale .

   Run the command below, replacing the following values as needed. If you are not using the autoscale feature, remove the last 3 options (starting with autoscaler) from the command.

   • [cluster-id]: The ID of your cluster.
   • [pool-id]: The ID of your node pool.
   • [number-of-nodes]: Enter one value less than the number of nodes that exist in the node pool.
   • [maximum-nodes]: The maximum number of nodes for the pool. Enter one value less than the existing value.
   • [minimum-nodes]: The minimum number of nodes for the pool. Enter one value less than the existing value.

   linode-cli lke pool-update [cluster-id] [pool-id] \
     --count [number-of-nodes] \
     --autoscaler.enabled true \
     --autoscaler.max [maximum-nodes] \
     --autoscaler.min [minimum-nodes]

   For more details, review the CLI request sample on the Node Pool Update API reference .

   Perform the API request below, replacing the following values as needed. If you are not using the autoscale feature, remove the autoscaler parameters from the request.

   • [cluster-id]: The ID of your cluster.
   • [pool-id]: The ID of your node pool.
   • [number-of-nodes]: Enter one value less than the number of nodes that already exist in the node pool.
   • [maximum-nodes]: The maximum number of nodes for the pool. Enter one value less than the existing value.
   • [minimum-nodes]: The minimum number of nodes for the pool. Enter one value less than the existing value.

   curl -H "Content-Type: application/json" \
         -H "Authorization: Bearer $TOKEN" \
         -X PUT -d '{
           "count": [number-of-nodes],
           "autoscaler": {
             "enabled": true,
             "max": [maximum-nodes],
             "min": [minimum-nodes]
         }' \
         https://api.linode.com/v4/lke/clusters/[cluster-id]/pools/[pool-id]

   For more details, review the shell request sample on the Node Pool Update API reference .

Perform an Out-of-Place Upgrade

This process temporarily creates an additional node pool (with multiple worker nodes). This minimizes the time the upgrade may take (compared with an in-place upgrade) but increases the cost impact. This is recommended for larger production applications.

1. Create a new pool with the same Compute Instance plans and number of nodes as your existing pool.

   Within the Node Pools section on the details page of your LKE cluster in Cloud Manager, click the Add a Node Pool button. In the prompt that appears, enter the plan type, plan size, and the number of nodes to match the existing node pool. See Add a Node Pool .

   Run the command below, replacing the following values as needed. If you are not using the autoscale feature, remove the last 3 options (starting with autoscaler) from the command.

   • [cluster-id]: The ID of your cluster
   • [plan-type]: The ID of the Compute Instance plan you wish to use. You can see all available plans and their corresponding IDs by running linode-cli linodes types.
   • [maximum-nodes]: The maximum number of nodes for the pool.
   • [minimum-nodes]: The minimum number of nodes for the pool.

   linode-cli lke pool-create [cluster-id] \
       --type [plan-id]
       --count [number-of-nodes]
       --autoscaler.enabled true \
       --autoscaler.max [maximum-nodes] \
       --autoscaler.min [minimum-nodes] \

   For more details, reference the corresponding operation on the API/CLI docs (select the CLI tab).

   Perform the API request below, replacing the following values as needed. If you are not using the autoscale feature, remove the autoscaler parameters from the request.

   • [cluster-id]: The ID of your cluster
   • [plan-type]: The ID of the Compute Instance plan you wish to use. You can see all available plans and their corresponding IDs by running linode-cli linodes types.
   • [maximum-nodes]: The maximum number of nodes for the pool.
   • [minimum-nodes]: The minimum number of nodes for the pool.

   curl -H "Content-Type: application/json" \
         -H "Authorization: Bearer $TOKEN" \
         -X POST -d '{
           "type": "[plan-id]",
           "count": [number-of-nodes],
           "autoscaler": {
             "enabled": true,
             "max": [maximum-nodes],
             "min": [minimum-nodes]
           }
         }' \
         https://api.linode.com/v4/lke/clusters/[cluster-id]/pools

   For more details, reference the corresponding operation on the API/CLI docs .

2. Select one worker node on the old pool and prevent new pods from being created on it. This can be accomplished using the cordon command through kubectl, replacing [node] with the name of the node you are taking action on.

   kubectl cordon [node]

3. Once traffic is no longer being assigned to that node, drain that worker node so that the existing workloads are rescheduled to nodes on the other pool.

   kubectl drain [node] --ignore-daemonsets

   By default, this will allow the pods to gracefully terminate with a default grace period of 30 sections. If your nodes have a long grace period, it may take a while to migrate off the existing workloads. You can adjust this by using the --grace-period [value] option in the above drain command, replacing [value] with the time in sections you wish to use. See Termination of Pods on the official Kubernetes documentation.

4. Repeat steps 2 through 3 for each worker node on the old pool.

5. Once all worker nodes have been drained on the old node pool, the pool can be deleted.

   Locate the original node pool on the details page of your LKE cluster in Cloud Manager. Click the corresponding Delete Pool button as outlined in Remove a Node Pool .

   Run the command below, replacing [cluster-id] with the ID of your cluster and [pool-id] with the ID of the original node pool.

   linode-cli lke pool-delete [cluster-id] [pool-id]

   For more details, reference the corresponding operation on the API/CLI docs (select the CLI tab).

   Perform the API request below, replacing [cluster-id] with the ID of your cluster and [pool-id] with the ID of the original node pool.

   curl -H "Authorization: Bearer $TOKEN" \
       -X DELETE \
       https://api.linode.com/v4/lke/clusters/[cluster-id]/pools/[pool-id]

   For more details, reference the corresponding operation on the API/CLI docs .

More Information

You may wish to consult the following resources for additional information on this topic. While these are provided in the hope that they will be useful, please note that we cannot vouch for the accuracy or timeliness of externally hosted materials.

• Kubernetes Documentation
• Kubernetes Changelog
