Turbocharge Your WordPress Search Using Solr

The standard search that is built into WordPress does not provide the best search experience you can offer your visitors, given its inability to suggest search phrases, catch typos, understand word variations, organize and filter results, and index documents for search results. Full text search engines often offer these features and Apache Solr is a free, open-source option that does.

In this guide, you will learn how to install Java, install and configure Solr on Ubuntu 14.x or Debian 7.x, and integrate it into your WordPress blog using the WPSolr plugin.

Prerequisites

• WordPress must be already installed and configured. If you have not yet installed WordPress, follow the Manage Web Content with WordPress guide.

• Much of this guide assumes that Solr is being installed on the same server as WordPress; however, Solr can be installed on a second server for security or scalability reasons. Alternate steps are provided should Solr be installed on a second server.

Install Java

Since Solr is a Java web application, it requires a Java Runtime Environment (JRE).

1. Check if Java is already installed on your server using the following commands:

   whereis java
   java -version


   If Java is already installed, it will output the path of the executable Java file and the Java version that is being run. Skip to the next step .

2. Install the openjdk-7-jre-headless package:

   sudo apt-get install openjdk-7-jre-headless


3. After the JRE is installed, test it by checking the version:

   java -version


   If it’s working correctly, it should produce similar output:

   java version "1.7.0_75"
   OpenJDK Runtime Environment (IcedTea 2.5.4) (7u75-2.5.4-1~deb7u1)
   OpenJDK 64-Bit Server VM (build 24.75-b04, mixed mode)


Install unzip, curl and php5-curl

1. Install the unzip, curl, and php5-curl packages:

   sudo apt-get install unzip curl php5-curl


2. Restart the HTTP server where WordPress is hosted:

   sudo service apache2 restart


Install and Configure Solr

Download and Install Solr

1. Open the Solr download site in your browser.

2. Apache will provide a download link based on location:

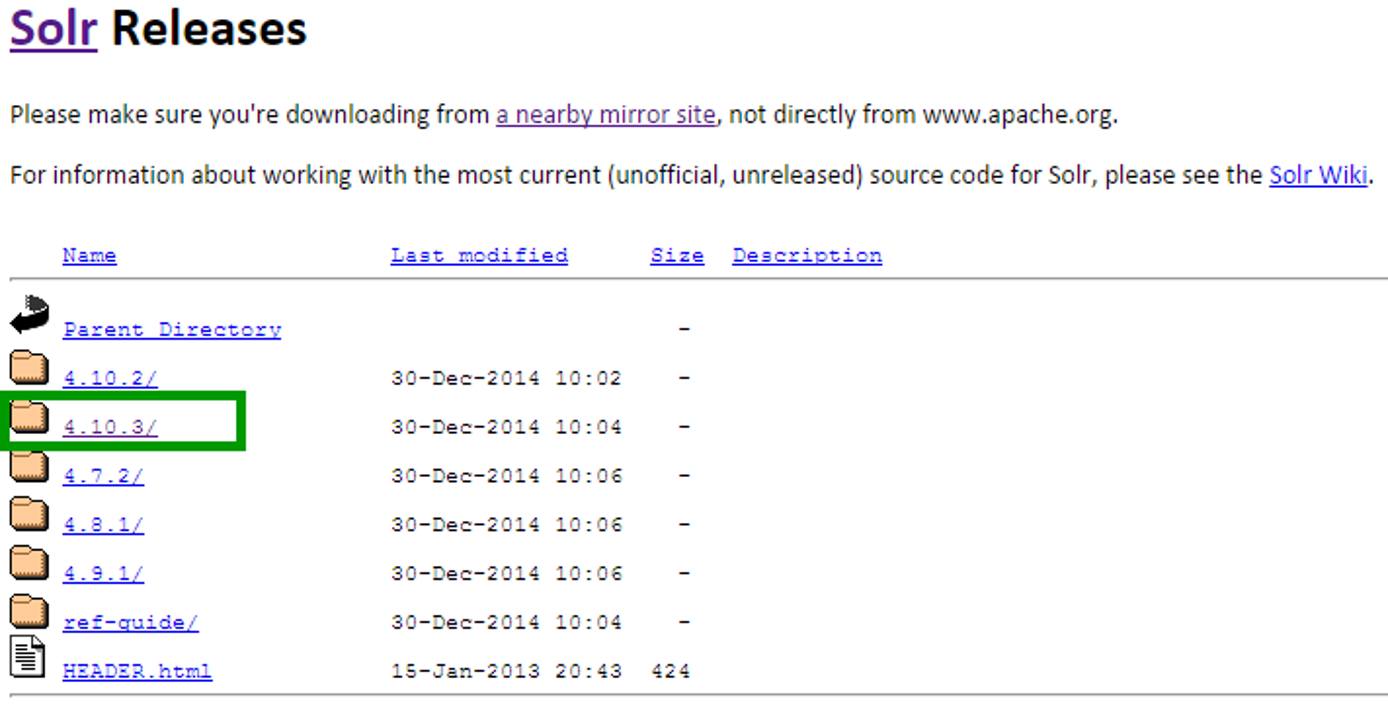

3. Click the link to open a page of Solr releases:

4. Click on the highest available 4.x version to see the files in that release:

   Note

   Since Solr 5.x is still in beta, its configuration procedures are different from 4.x, and WPSolr is not yet compatible with the 5.x release.



5. Copy the link address for the non-source .tgz file.

6. On your Linode, download that file into your home directory using the wget command:

   cd ~
   wget http://apache.bytenet.in/lucene/solr/4.10.4/solr-4.10.4.tgz


7. Install Solr under the /opt directory:

   sudo tar -C /opt -xzvf solr-4.10.4.tgz


Install WPSolr Configuration Files

For Solr to index blog posts, it needs to know the structure of the blog data. This structure is described in Solr configuration files.

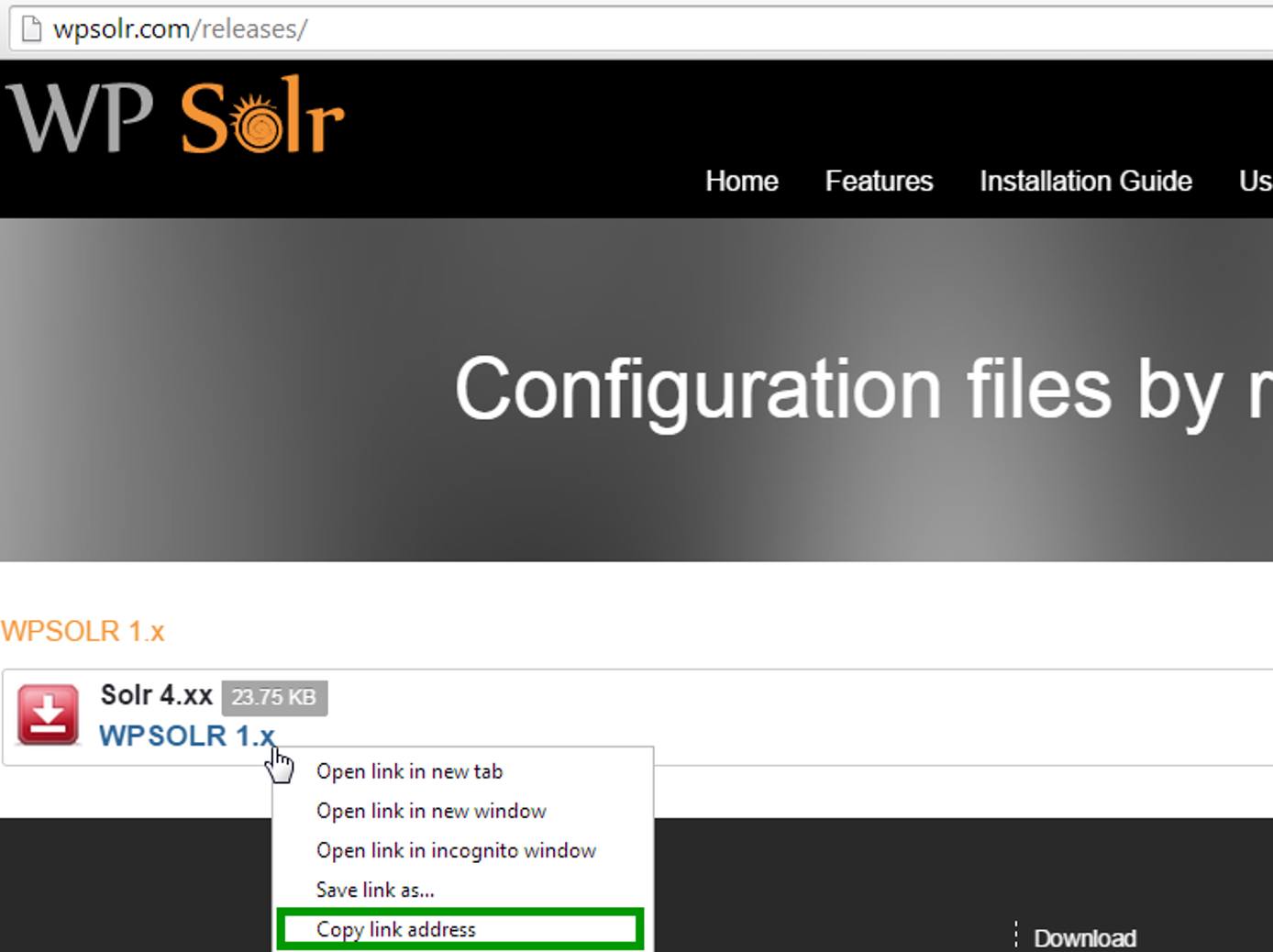

1. WPSolr provides ready-made configuration files on their website. Visit the WPSolr website and get the link address of the latest WPSolr release for your Solr version:

   The copied address will look similar to http://wpsolr.com/?wpdmdl=2064.

2. On the server where Solr is installed, use the wget command to download the file from copied address and save it as wpsolr_config.zip.

   wget -O wpsolr_config.zip http://wpsolr.com/?wpdmdl=2064


3. Extract wpsolr_config.zip:

   unzip wpsolr_config.zip


4. Copy schema.xml and solrconfig.xml into /opt/solr-4.10.4/example/solr/collection1/conf. Back up the original files before copying:

   sudo cp /opt/solr-4.10.4/example/solr/collection1/conf/schema.xml /opt/solr-4.10.4/example/solr/collection1/conf/schema.xml.original
   sudo cp /opt/solr-4.10.4/example/solr/collection1/conf/solrconfig.xml  /opt/solr-4.10.4/example/solr/collection1/conf/solrconfig.xml.original
   sudo cp schema.xml  /opt/solr-4.10.4/example/solr/collection1/conf/
   sudo cp solrconfig.xml  /opt/solr-4.10.4/example/solr/collection1/conf/


Change the IP Address and Port of Solr (Optional)

By default, Solr listens for search requests on all IP addresses at port 8983. For security reasons, you may wish to change the IP address and/or port it listens on. It is also recommended that only WordPress be able to query Solr.

1. First, make a back up of /opt/solr-4.10.4/example/etc/jetty.xml. Then, open the file in a text editor:

   sudo cp /opt/solr-4.10.4/example/etc/jetty.xml /opt/solr-4.10.4/example/etc/jetty.xml.backup


2. Locate the section where listening host and port are set:

   File: /opt/solr-4.10.4/example/etc/jetty.xml

   1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

   <!-- <Call name="addConnector"> <Arg> <New class="org.eclipse.jetty.server.nio.SelectChannelConnector"> <Set name="host"><SystemProperty name="jetty.host" /></Set> <Set name="port"><SystemProperty name="jetty.port" default="8983"/></Set> <Set name="maxIdleTime">50000</Set> <Set name="Acceptors">2</Set> <Set name="statsOn">false</Set> <Set name="confidentialPort">8443</Set> <Set name="lowResourcesConnections">5000</Set> <Set name="lowResourcesMaxIdleTime">5000</Set> </New> </Arg> </Call> -->

3. Set the appropriate listening IP address:

   • If Solr is on the same server as WordPress, replace <Set name="host"><SystemProperty name="jetty.host" /></Set> with:

     <Set name="host">localhost</Set>


   • If Solr is on a different server from WordPress, replace <Set name="host"><SystemProperty name="jetty.host" /></Set> with:

     <Set name="host">123.45.67.89</Set>


     Replace 123.45.67.89 with your own private IP or FQDN.

Create a User Account and User Group for Solr

For security purposes, Solr should run with its own user account and group.

1. Create a group named solr:

   sudo addgroup --system solr


2. Create a user named solr:

   sudo adduser --system --ingroup solr --home /opt/solr-4.10.4 --shell /bin/sh --disabled-password --disabled-login solr


3. Transfer ownership of the Solr directory to the user solr:

   sudo chown -R solr:solr /opt/solr-4.10.4


Configure Solr as a Startup Service

1. Use a text editor to create a new script /etc/init.d/solr. Alternatively, you can download it from this link :

   sudo nano /etc/init.d/solr


2. Copy the following text into the editor, save and close it:

   Note

   If using a different version of Solr, change the JETTY_HOME=/opt/solr-4.10.4/example line to match the installed version.

   File: /etc/init.d/solr

   1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176

   #!/bin/sh -e # # /etc/init.d/solr -- startup script for Apache Solr # # ### BEGIN INIT INFO # Provides: solr # Required-Start: $local_fs $remote_fs $network # Required-Stop: $local_fs $remote_fs $network # Should-Start: $named # Should-Stop: $named # Default-Start: 2 3 4 5 # Default-Stop: 0 1 6 # Short-Description: Start Solr # Description: Start Apache Solr jetty server ### END INIT INFO PATH=/usr/local/sbin:/usr/local/bin:/sbin:/bin:/usr/sbin:/usr/bin NAME=solr DESC="Solr search engine" JETTY_HOME=/opt/solr-4.10.4/example START_JAR="$JETTY_HOME/start.jar" if [ `id -u` -ne 0 ]; then echo "You need root privileges to run this script" exit 1 fi # Make sure jetty is started with system locale if [ -r /etc/default/locale ]; then . /etc/default/locale export LANG fi . /lib/lsb/init-functions if [ -r /etc/default/rcS ]; then . /etc/default/rcS fi # Run Jetty as this user ID (default: jetty) # Set this to an empty string to prevent Jetty from starting automatically SOLR_USER=solr SOLR_GROUP=solr export JAVA="/usr/bin/java" # Extra options to pass to the JVM # Set java.awt.headless=true if JAVA_OPTIONS is not set so the # Xalan XSL transformer can work without X11 display on JDK 1.4+ # It also sets the maximum heap size to 256M to deal with most cases. JAVA_OPTIONS="-Djava.awt.headless=true" # Timeout in seconds for the shutdown of all webapps JETTY_SHUTDOWN=30 JETTY_STOP_PORT=17935 JETTY_STOP_KEY=stopsolr JETTY_ARGS="-Djetty.home=$JETTY_HOME -DSTOP.PORT=$JETTY_STOP_PORT -DSTOP.KEY=$JETTY_STOP_KEY" # Define other required variables PIDFILE="/var/run/$NAME.pid" WEBAPPDIR="$JETTY_HOME/webapps" ################################################## # Do the action ################################################## case "$1" in start) log_daemon_msg "Starting $DESC." "$NAME" if start-stop-daemon --quiet --test --start --pidfile "$PIDFILE" \ --user "$SOLR_USER" --group "$SOLR_GROUP" --startas "$JAVA" > /dev/null; then if [ -f $PIDFILE ] ; then log_warning_msg "$PIDFILE exists, but solr was not running. Ignoring $PIDFILE" fi start-stop-daemon --start --pidfile "$PIDFILE" --chuid "$SOLR_USER:$SOLR_GROUP" \ --chdir "$JETTY_HOME" --background --make-pidfile --startas $JAVA -- \ $JAVA_OPTIONS $JETTY_ARGS -jar $START_JAR --daemon log_daemon_msg "$DESC started" "$NAME" sleep 5 if start-stop-daemon --test --start --pidfile "$PIDFILE" \ --user $SOLR_USER --group $SOLR_GROUP --startas "$JAVA" > /dev/null; then log_end_msg 1 else log_end_msg 0 fi else log_warning_msg "(already running)." log_end_msg 0 exit 1 fi ;; stop) log_daemon_msg "Stopping $DESC." "$NAME" if start-stop-daemon --quiet --test --start --pidfile "$PIDFILE" \ --user "$SOLR_USER" --group "$SOLR_GROUP" --startas "$JAVA" > /dev/null; then if [ -x "$PIDFILE" ]; then log_warning_msg "(not running but $PIDFILE exists)." else log_warning_msg "(not running)." fi else start-stop-daemon --quiet --stop \ --pidfile "$PIDFILE" --user "$SOLR_USER" --group "$SOLR_GROUP" \ --startas $JAVA -- $JAVA_OPTIONS $JETTY_ARGS -jar $START_JAR --stop > /dev/null while ! start-stop-daemon --quiet --test --start \ --pidfile "$PIDFILE" --user "$SOLR_USER" --group "$SOLR_GROUP" \ --startas "$JAVA" > /dev/null; do sleep 1 log_progress_msg "." JETTY_SHUTDOWN=`expr $JETTY_SHUTDOWN - 1` || true if [ $JETTY_SHUTDOWN -ge 0 ]; then start-stop-daemon --oknodo --quiet --stop \ --pidfile "$PIDFILE" --user "$SOLR_USER" --group "$SOLR_GROUP" \ --startas $JAVA -- $JAVA_OPTIONS $JETTY_ARGS -jar $START_JAR --stop else log_progress_msg " (killing) " start-stop-daemon --stop --signal 9 --oknodo \ --quiet --pidfile "$PIDFILE" \ --user "$SOLR_USER" --group "$SOLR_GROUP" fi done rm -f "$PIDFILE" log_daemon_msg "$DESC stopped." "$NAME" log_end_msg 0 fi ;; status) if start-stop-daemon --quiet --test --start --pidfile "$PIDFILE" \ --user "$SOLR_USER" --group "$SOLR_GROUP" --startas "$JAVA" > /dev/null; then if [ -f "$PIDFILE" ]; then log_success_msg "$DESC is not running, but pid file exists." exit 1 else log_success_msg "$DESC is not running." exit 3 fi else log_success_msg "$DESC is running with pid `cat $PIDFILE`" fi ;; restart|force-reload) if ! start-stop-daemon --quiet --test --start --pidfile "$PIDFILE" \ --user "$SOLR_USER" --group "$SOLR_GROUP" --startas "$JAVA" > /dev/null; then $0 stop $* sleep 1 fi $0 start $* ;; try-restart) if start-stop-daemon --quiet --test --start --pidfile "$PIDFILE" \ --user "$SOLR_USER" --group "$SOLR_GROUP" --startas "$JAVA" > /dev/null; then $0 start $* fi ;; *) log_success_msg "Usage: $0 {start|stop|restart|force-reload|try-restart|status}" exit 1 ;; esac exit 0

3. After saving the script, run the following commands:

   sudo chmod ugo+x /etc/init.d/solr
   sudo update-rc.d  solr defaults
   sudo update-rc.d  solr enable
   sudo service solr start


Test Solr

Run the following command on the server where Solr is installed:

curl http://localhost:8983/solr/collection1/select

If it shows similar output, Solr is installed and configured correctly:

<?xml version="1.0" encoding="UTF-8"?>
<response>
<lst name="responseHeader"><int name="status">0</int><int name="QTime">1</int><lst name="params"/></lst><result name="response" numFound="0" start="0"></result>
</response>

If Solr is installed on a different server from WordPress, repeat the test from the WordPress server by sending a request to the Solr server:

curl http://HOSTNAME-OR-IP-OF-SOLR-SERVER:8983/solr/collection1/select

Install and Configure WPSolr

Install the WPSolr Plugin

1. Install the WPSolr WordPress plugin, either through your WordPress admin console or by downloading the files into your plugins/ directory.

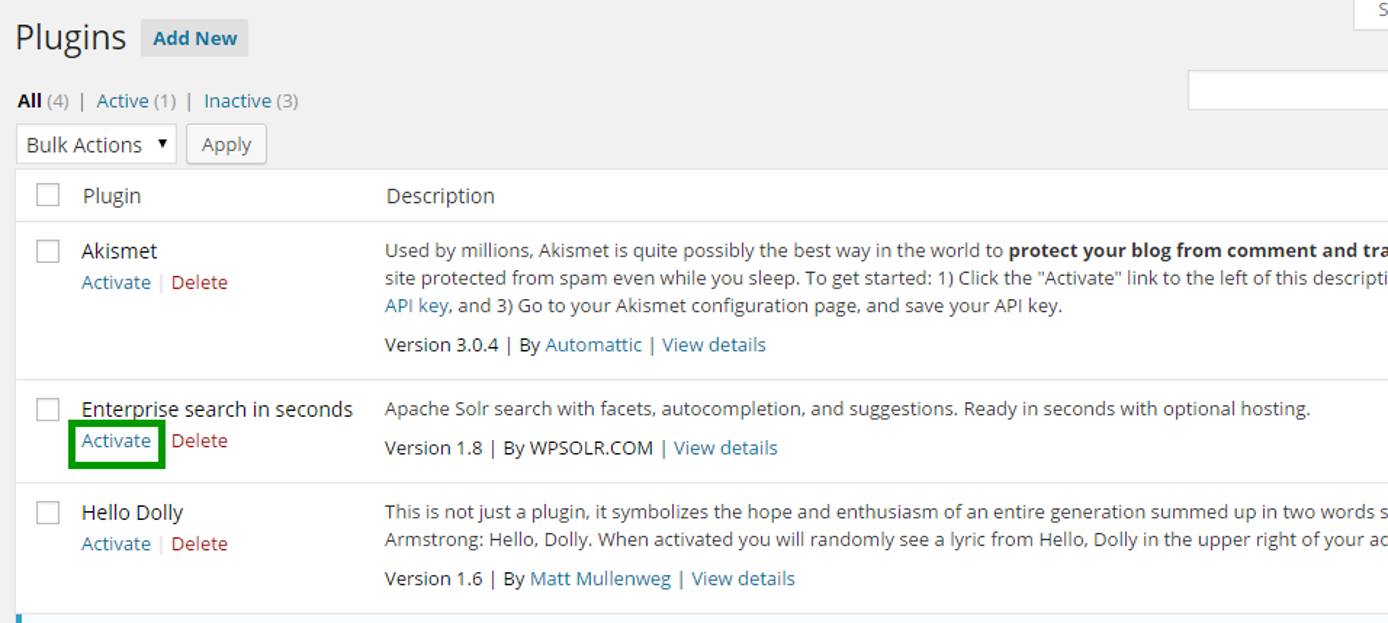

2. On the Plugins page, activate the plugin named Enterprise Search in seconds:

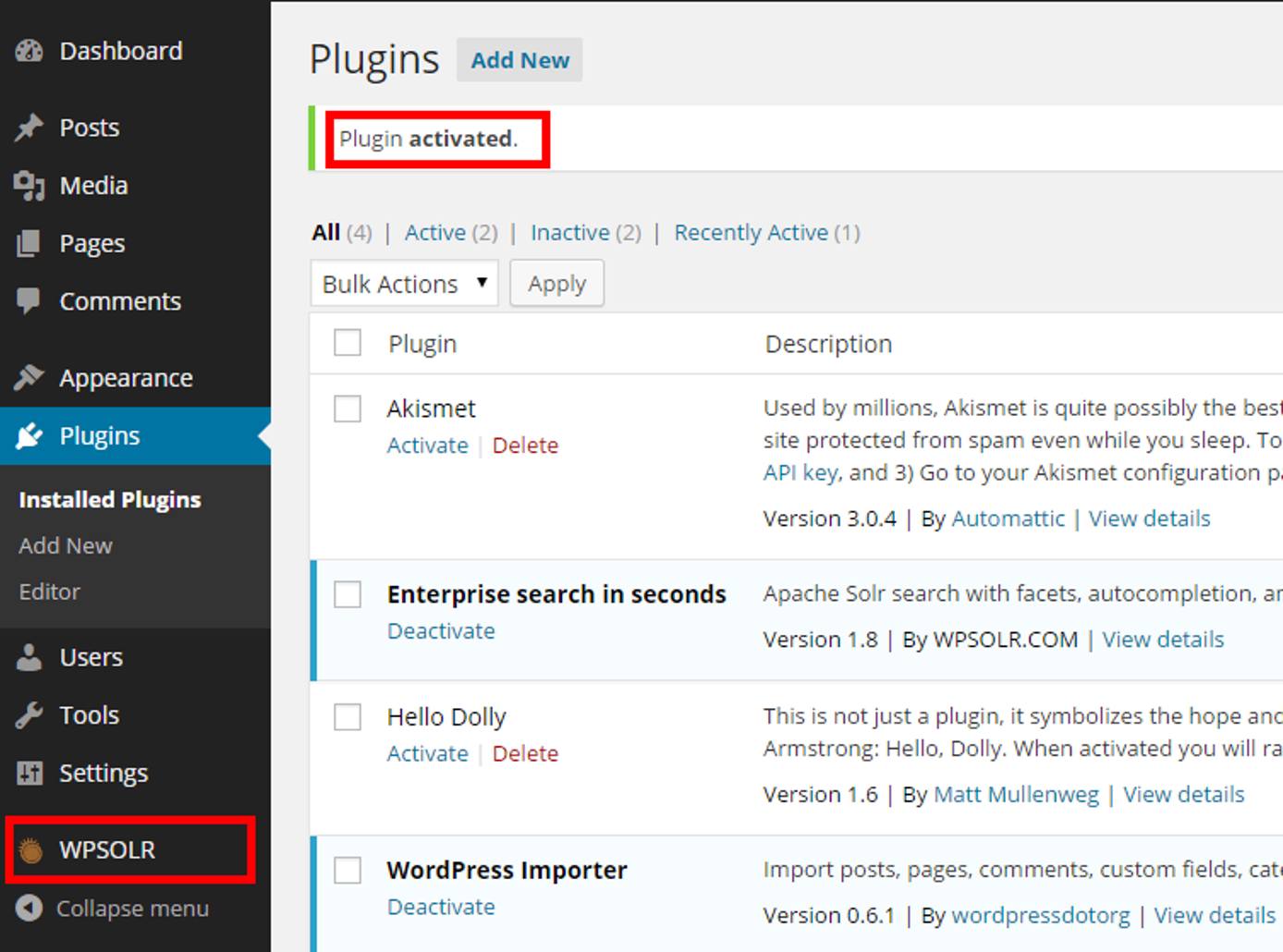

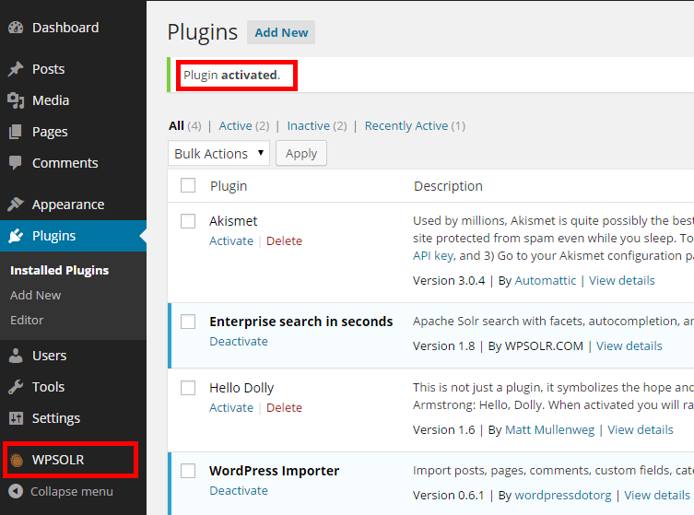

3. WordPress then displays a plugin activated message and adds a WPSOLR menu item to the sidebar:

Configure WPSolr Plugin

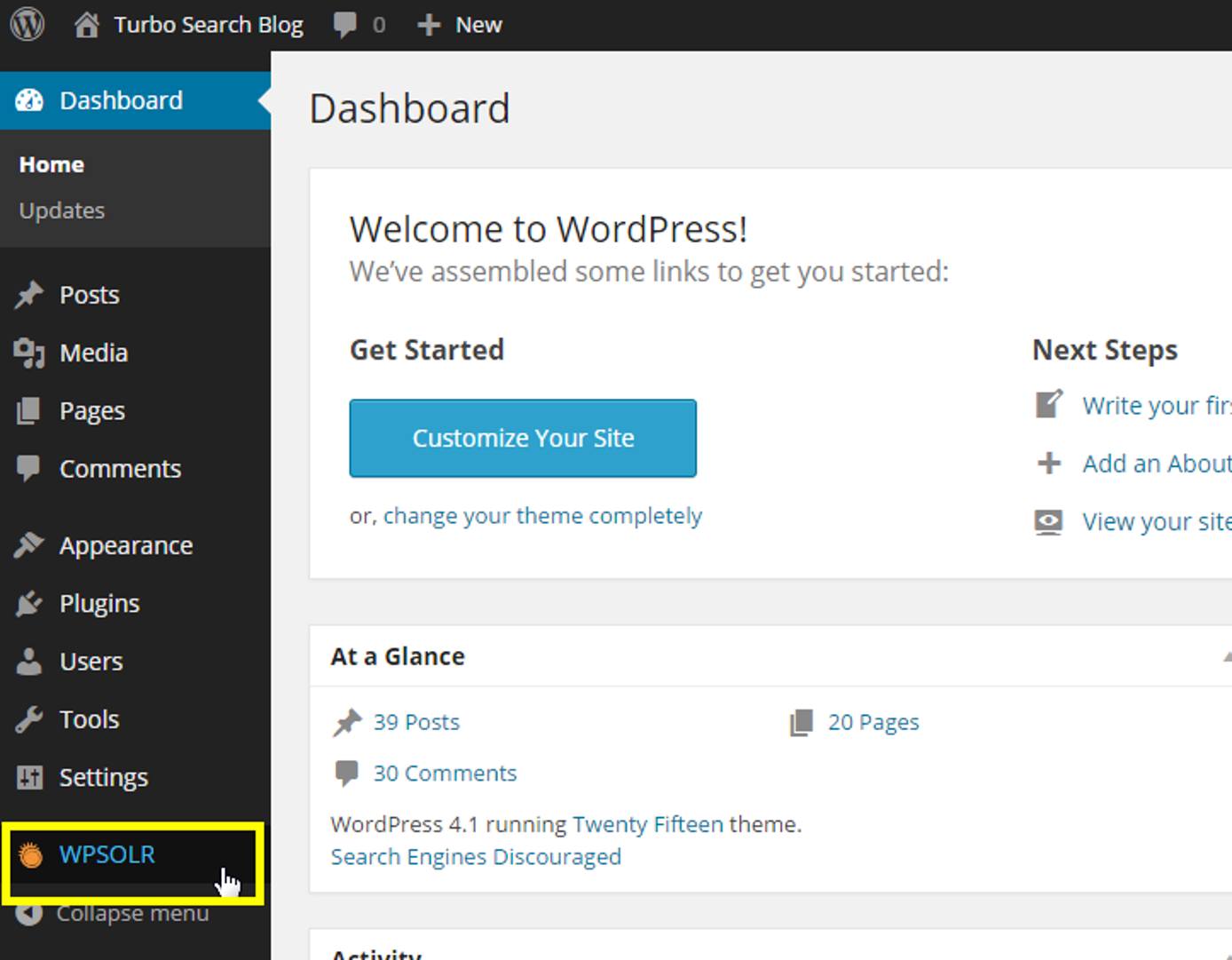

1. Open WPSolr page:

2. Click on the button I uploaded my 2 compatible configuration files to my Solr core:

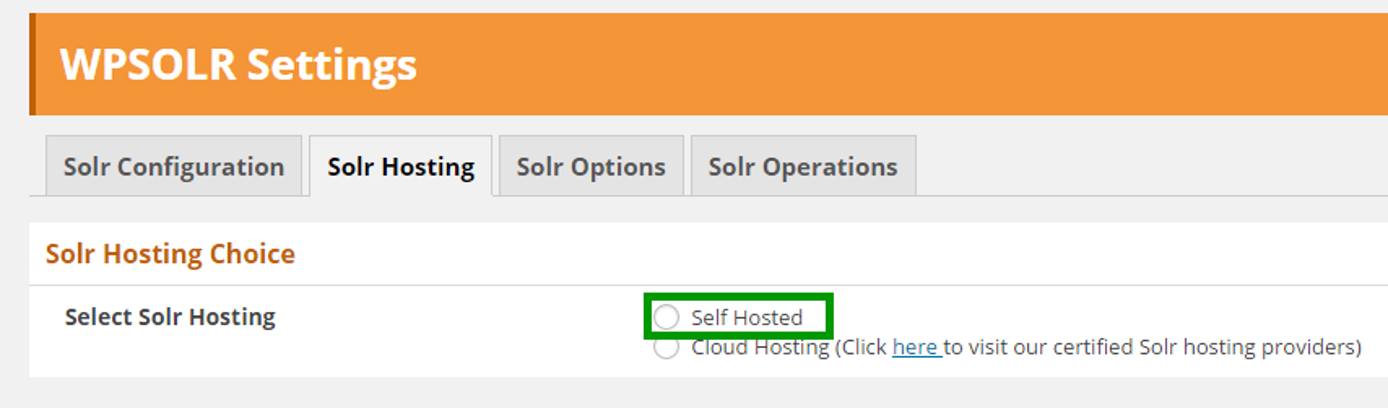

3. On the next page, select Self Hosted option:

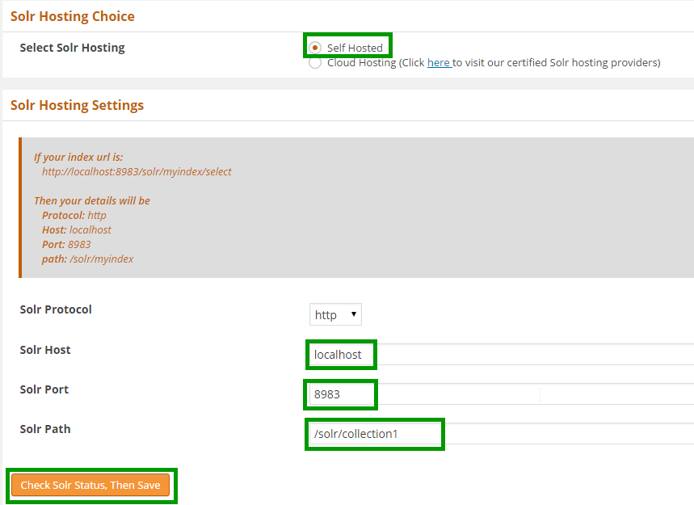

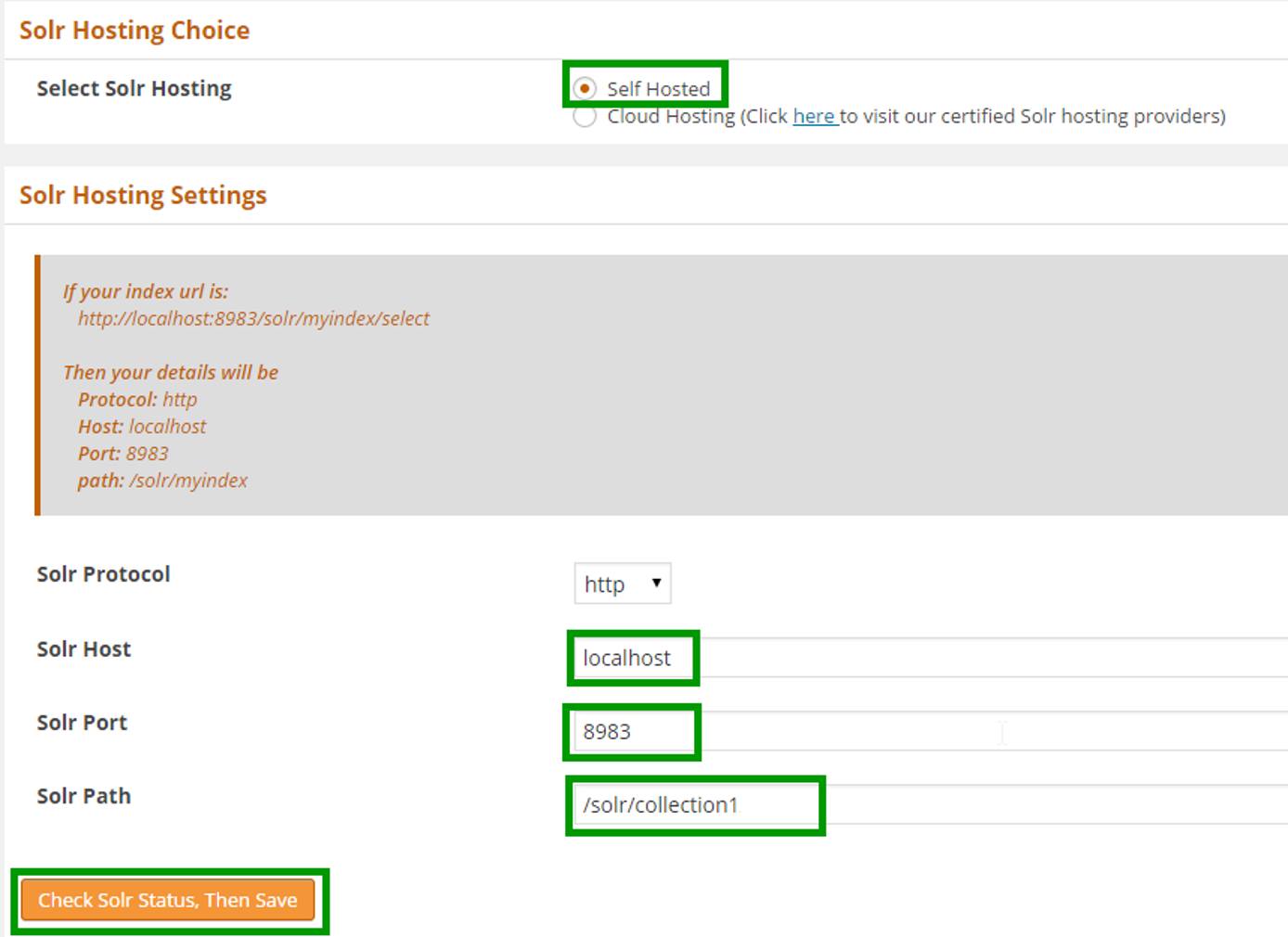

4. When selecting Self Hosted, the plugin prompts you to enter details about the Solr server:

   • Solr Host: This should be the same value as the host typed in /opt/solr-4.10.4/example/etc/jetty.xml. If Solr is installed on same server as WordPress, enter localhost. If Solr is installed on a different server, enter the same IP address or hostname.

   • Solr Port: This should be the same value as the port typed in /opt/solr-4.10.4/example/etc/jetty.xml.

   • Solr Path: Set this value to /solr/collection1, the default Solr core. The Solr server can run multiple Solr cores, each core serving a different set of search data. For more information on Solr cores, go through the Solr Core wiki .

5. Press the Check Solr Status, then Save button. If everything is set correctly, it will show a green tick mark.

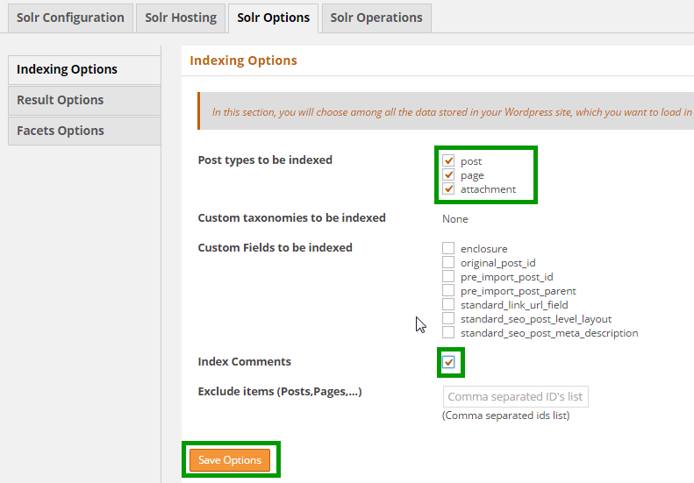

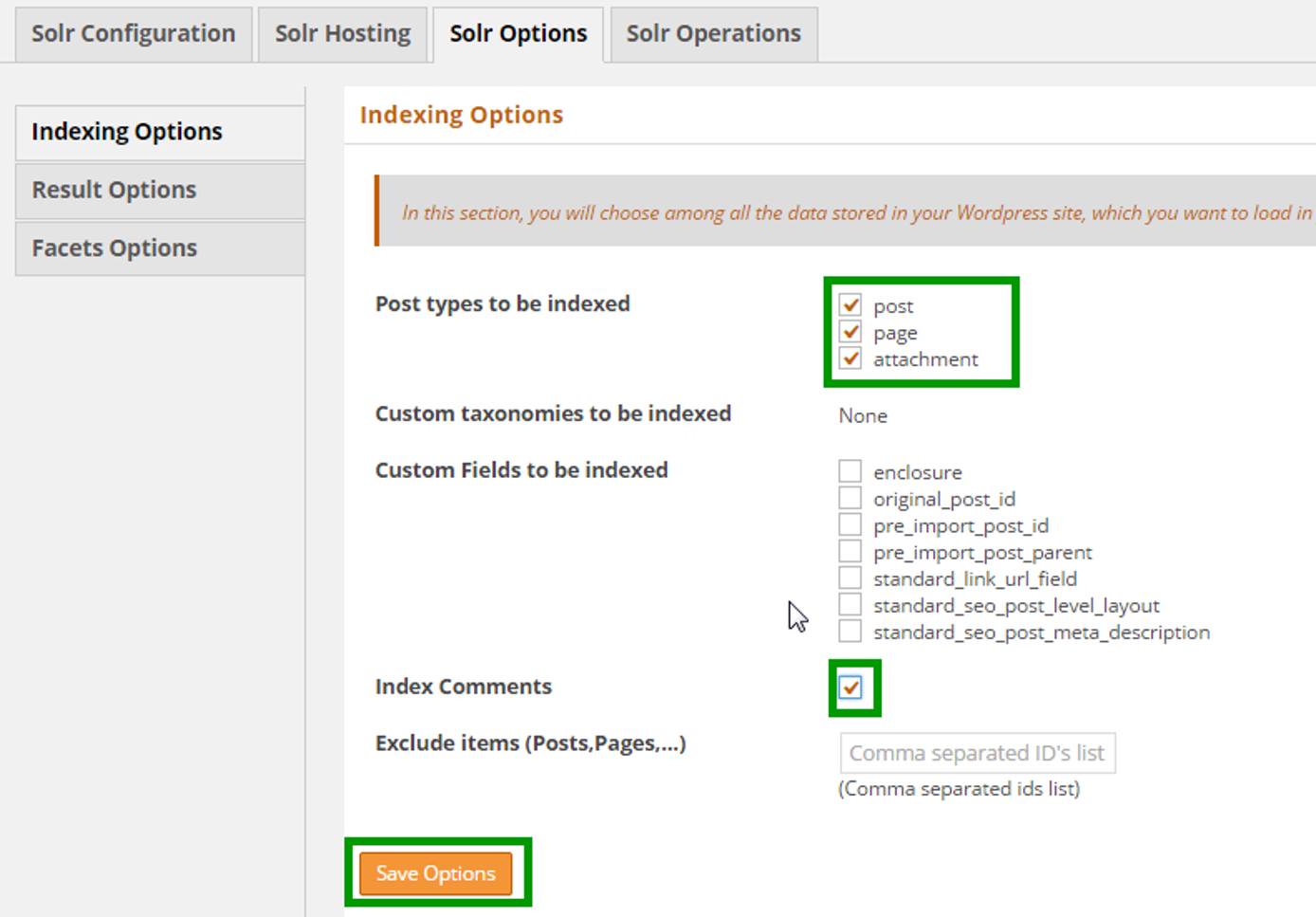

6. Click on the Solr Options tab:

   • Post types to be indexed: Selecting all of them is recommended. Post indexes all blog posts, page all pages (such as about pages), and attachment all documents (such as PDFs and DOC files).

   • Custom taxonomies to be indexed: Generally there is no need to enter anything here; however, if WordPress has been customized to organize blog posts in ways other than categories and tags, enter the name of the taxonomy here.

   • Custom fields to be indexed: Generally there is no need to select anything here.

   • Index Comments: Select this if you want search results to include comments. This is suitable only for blogs where comments add some value to the post and are rigorously moderated.

   • Exclude Items: If you want some posts or pages to be excluded from search results, enter their IDs here.

7. Press the Save Options button.

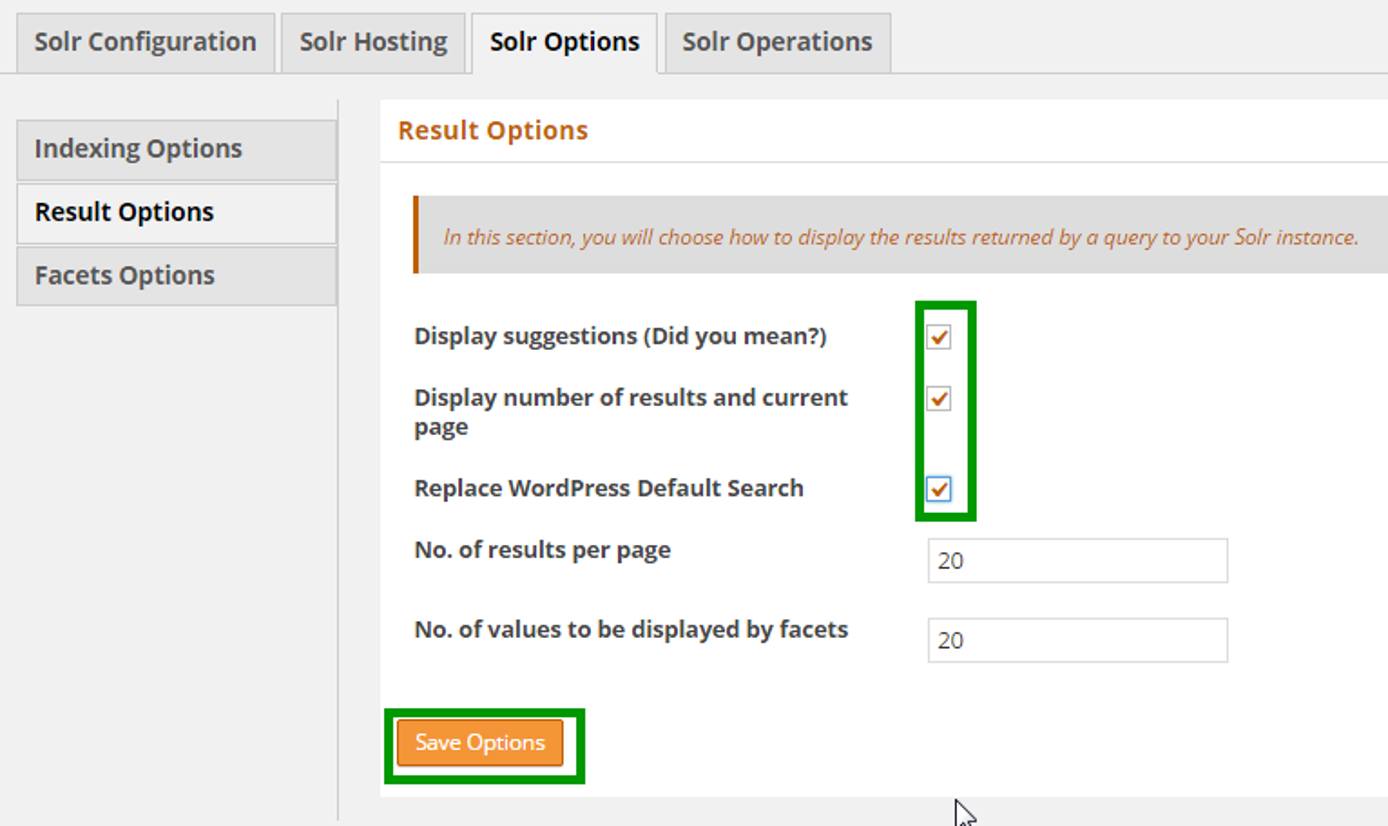

8. Open the Solr Options > Result Options page:

   • Display Suggestions (Did you mean?): Recommended. If selected, Solr will suggest alternate search phrases if it doesn’t find any matches for the entered search phrase:



   • Display number of results and current page: Recommended. This is useful for paginating search results.

   • Replace default WordPress search: Recommended. This replaces the default WordPress search box with one that uses Solr to show autocompletion suggestions.

   • No. of results per page: Configures how many search results should be shown per page.

   • No. of values to be displayed by facets: Facets refer to the filters that Solr shows to enable visitors to shortlist from search results. This value is the maximum number of values shown for each facet. For example, in the image below, this value has been set to 5 so that the Tags facet shows a maximum of 5 tag filters.



9. Press the Save Options button.

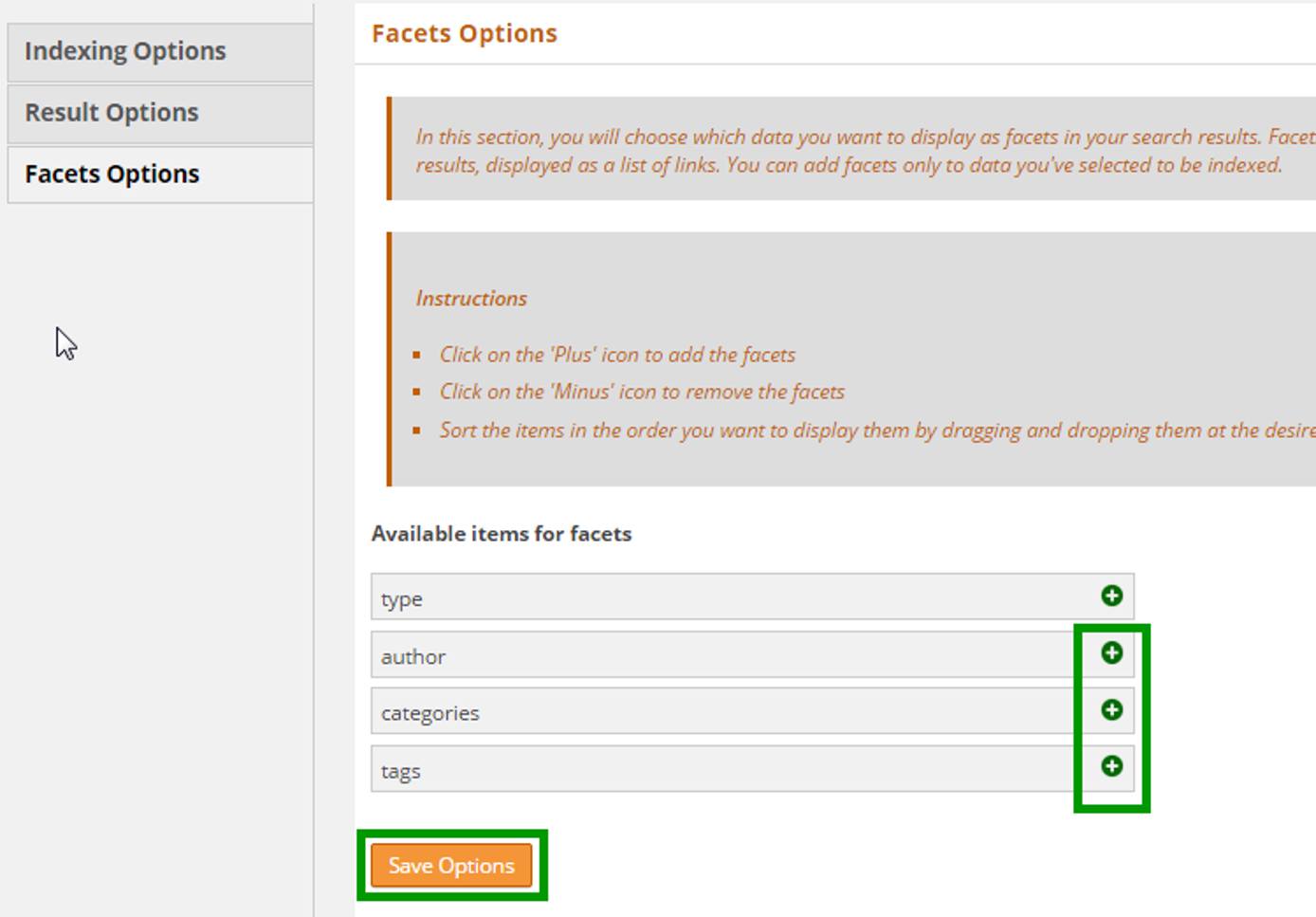

10. Next, open the Solr Options > Facets Options page:

    Press the green “+” buttons to add a facet. The ones added here are shown as filters in the search results page. Generally, categories and tags are enough, but if the blog has multiple contributors or custom taxonomies, you may also want to add these values as additional facets.

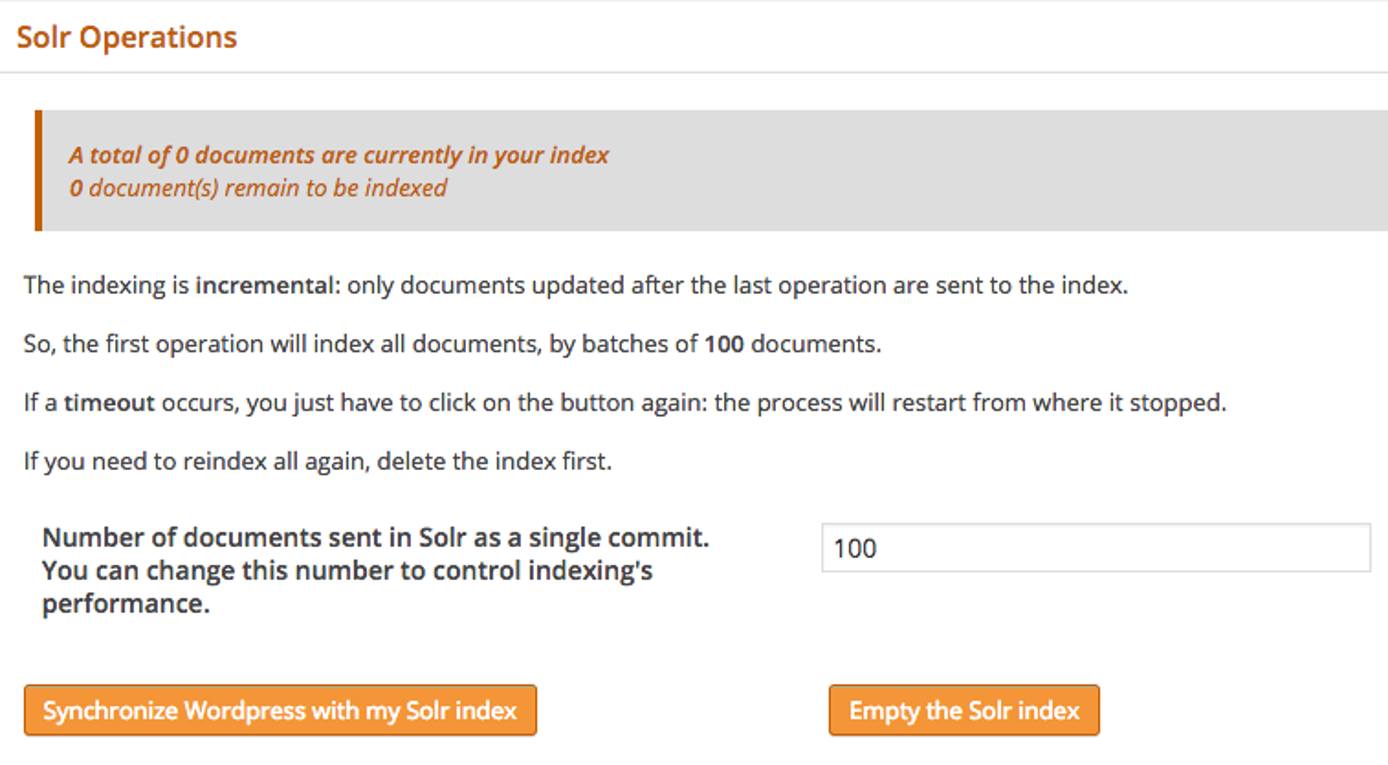

11. Go to the Solr Operations tab and click the Synchronize Wordpress with my Solr index button.

    Note

    Whenever you publish a new post or page or attachment, this button must be selected for the new pages to be indexed.

    After the operation has completed, the same page displays how many documents were indexed.

Testing the New Search

The following steps will be completed while on your blog.

1. Test autocompletion by beginning to type a word you know is in one of your blog posts. As you are typing, the search box should display some suggestions in a dropdown:

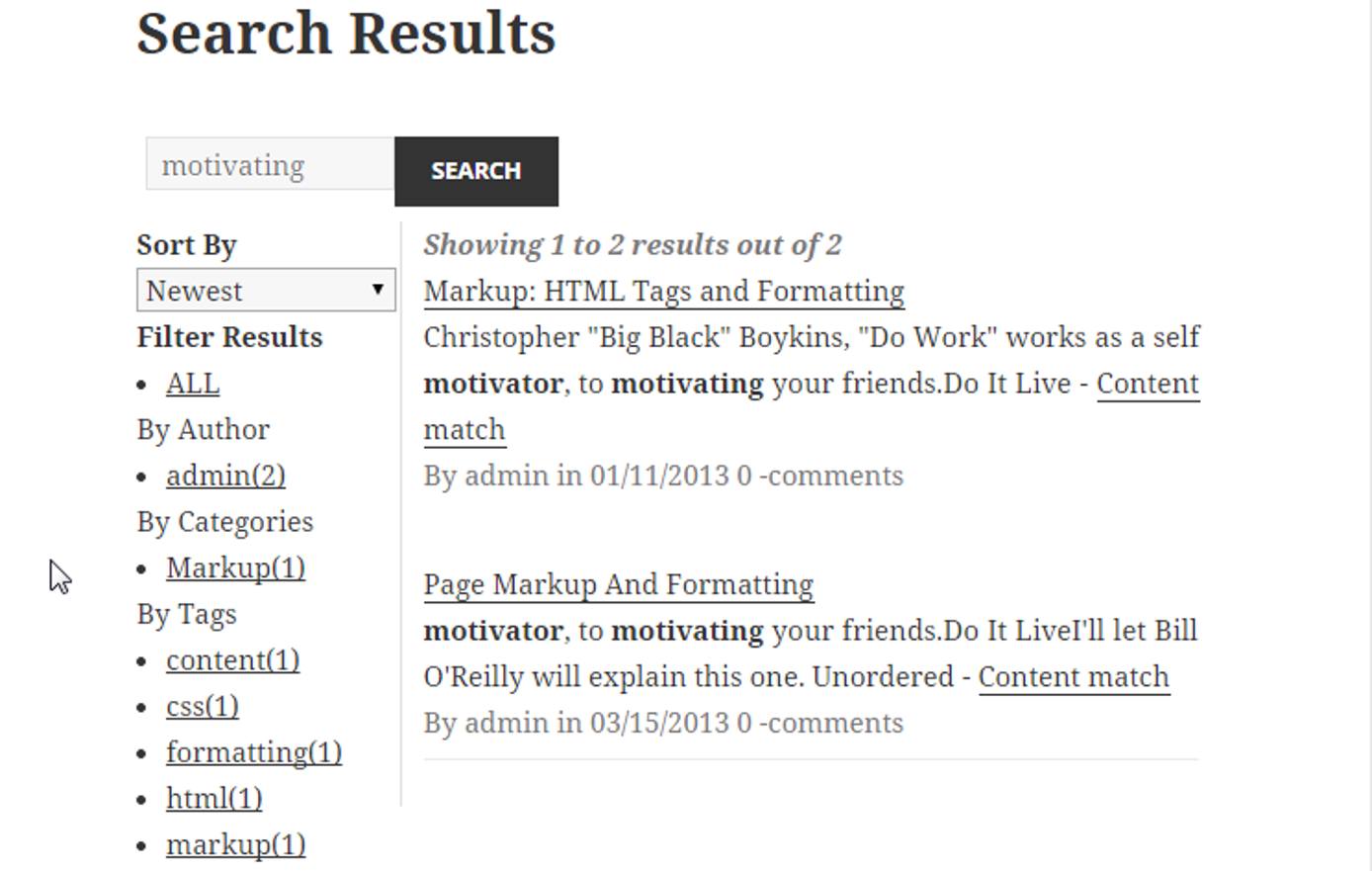

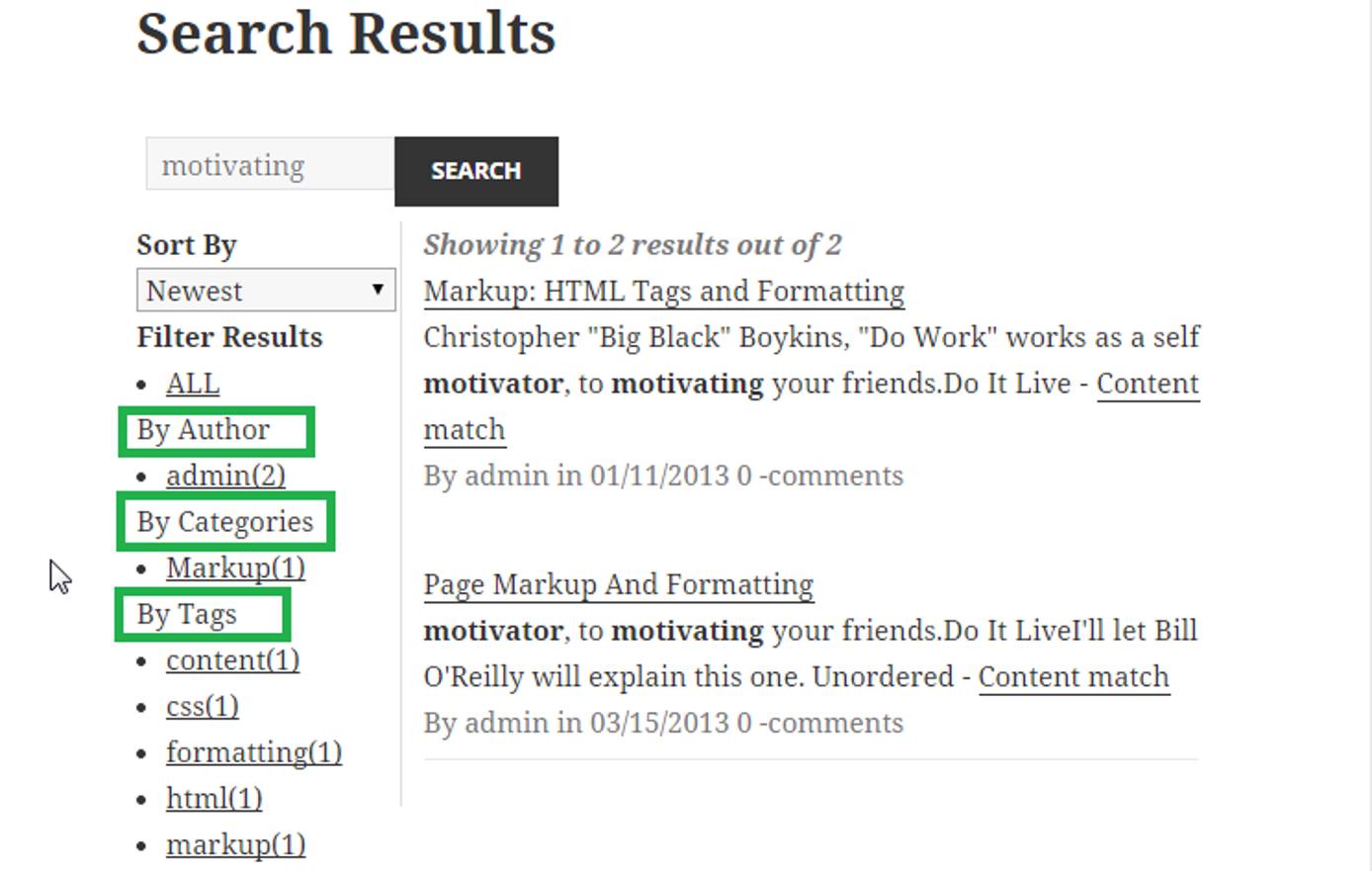

2. Test search results by entering a search phrase. Matching results should be displayed:

3. Test autocorrection suggestions by entering a word with some spelling mistakes or a word that does not occur in any of your blog posts. It should show Did you mean suggestions:



4. Test the document search by creating and publishing some test posts with added file attachments (such as PDFs). Update the search data, then search for a phrase that you know occurs in your attachment. It should display matches inside those attachments:



Location of Search Data

Search engine data is stored in the /opt/solr-4.10.4/example/solr/collection1/data directory.

Back Up or Restore Search Data

If you have a data backup procedure for your server, you can back up search data by including the /opt/solr-4.10.4/example/solr/collection1/data directory in the backup.

The backing up of search data is not critical, since it can always be recreated from the WordPress database. However, for very large blogs with thousands of posts and attachments, backing up and restoring search data will be much faster than recreating it. Overall, when migrating or merging a blog from another WordPress server, the recommended approach is to recreate the search data.

After a migration or merger, go to the Solr Operations option located at the WPSOLR plugin section of your administration panel and press the Synchronize Wordpress with my Solr index to recreate the search data.
